Overplotting is one of the most common problems in data visualization. When your dataset is big, points of your scatterplot tend to overlap, and your graphic becomes unreadable.

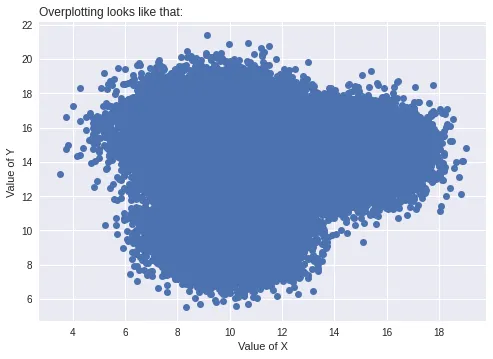

This problem is illustrated by a scatterplot, using matplotlib (you can see the code below). A first look might lead to the conclusion that there is no relationship between X and Y. We will see why it is a wrong conclusion in the sections below.

# libraries
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
import pandas as pd

# Dataset:
df=pd.DataFrame({'x': np.random.normal(10, 1.2, 20000), 'y': np.random.normal(10, 1.2, 20000), 'group': np.repeat('A',20000) })
tmp1=pd.DataFrame({'x': np.random.normal(14.5, 1.2, 20000), 'y': np.random.normal(14.5, 1.2, 20000), 'group': np.repeat('B',20000) })
tmp2=pd.DataFrame({'x': np.random.normal(9.5, 1.5, 20000), 'y': np.random.normal(15.5, 1.5, 20000), 'group': np.repeat('C',20000) })
df=df.append(tmp1).append(tmp2)

# plot
plt.plot( 'x', 'y', "", data=df, linestyle='', marker='o')
plt.xlabel('Value of X')
plt.ylabel('Value of Y')
plt.title('Overplotting looks like that:', loc='left')
plt.show()

Let’s see how to avoid it:

Dot Size

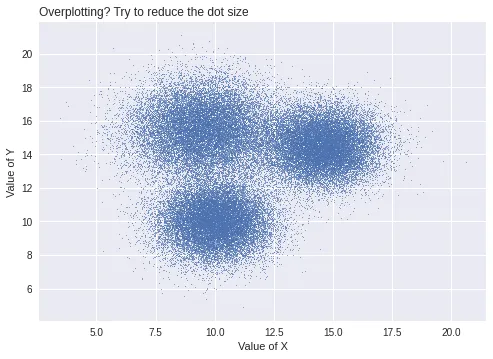

You can try to decrease marker size in your plot. This way they won't overlap and the patterns will be clearer.

# libraries
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
import pandas as pd

# Dataset:
df=pd.DataFrame({'x': np.random.normal(10, 1.2, 20000), 'y': np.random.normal(10, 1.2, 20000), 'group': np.repeat('A',20000) })
tmp1=pd.DataFrame({'x': np.random.normal(14.5, 1.2, 20000), 'y': np.random.normal(14.5, 1.2, 20000), 'group': np.repeat('B',20000) })
tmp2=pd.DataFrame({'x': np.random.normal(9.5, 1.5, 20000), 'y': np.random.normal(15.5, 1.5, 20000), 'group': np.repeat('C',20000) })
df=df.append(tmp1).append(tmp2)

# Plot with small marker size
plt.plot( 'x', 'y', "", data=df, linestyle='', marker='o', markersize=0.7)
plt.xlabel('Value of X')
plt.ylabel('Value of Y')
plt.title('Overplotting? Try to reduce the dot size', loc='left')
plt.show()

Transparency

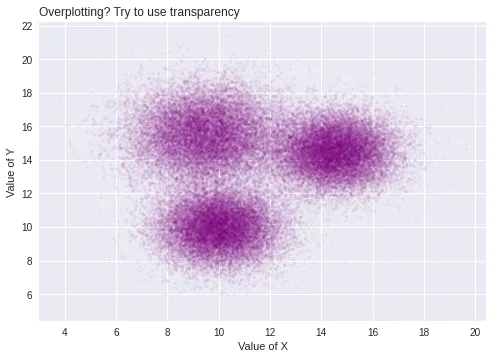

You can change the transparency with alpha parameter.

# libraries
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
import pandas as pd

# Dataset:
df=pd.DataFrame({'x': np.random.normal(10, 1.2, 20000), 'y': np.random.normal(10, 1.2, 20000), 'group': np.repeat('A',20000) })
tmp1=pd.DataFrame({'x': np.random.normal(14.5, 1.2, 20000), 'y': np.random.normal(14.5, 1.2, 20000), 'group': np.repeat('B',20000) })
tmp2=pd.DataFrame({'x': np.random.normal(9.5, 1.5, 20000), 'y': np.random.normal(15.5, 1.5, 20000), 'group': np.repeat('C',20000) })
df=df.append(tmp1).append(tmp2)

# Plot with transparency
plt.plot( 'x', 'y', "", data=df, linestyle='', marker='o', markersize=3, alpha=0.05, color="purple")

# Titles
plt.xlabel('Value of X')
plt.ylabel('Value of Y')
plt.title('Overplotting? Try to use transparency', loc='left')
plt.show()

2D Density

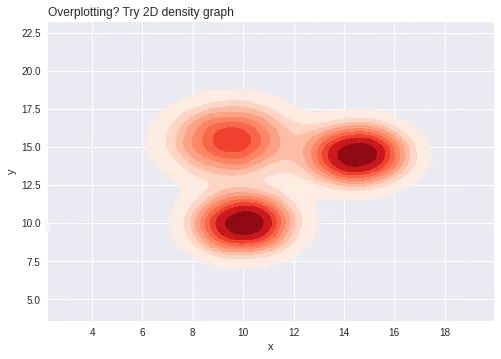

Density graph is a good alternative for an overplotted scatterplot. You can see the relationships between the variables better:

# libraries
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
import pandas as pd

# Dataset:
df=pd.DataFrame({'x': np.random.normal(10, 1.2, 20000), 'y': np.random.normal(10, 1.2, 20000), 'group': np.repeat('A',20000) })
tmp1=pd.DataFrame({'x': np.random.normal(14.5, 1.2, 20000), 'y': np.random.normal(14.5, 1.2, 20000), 'group': np.repeat('B',20000) })
tmp2=pd.DataFrame({'x': np.random.normal(9.5, 1.5, 20000), 'y': np.random.normal(15.5, 1.5, 20000), 'group': np.repeat('C',20000) })
df=df.append(tmp1).append(tmp2)

# 2D density plot:
sns.kdeplot(data = df, x="x", y="y", cmap="Reds", shade=True)
plt.title('Overplotting? Try 2D density graph', loc='left')
plt.show()

Sampling

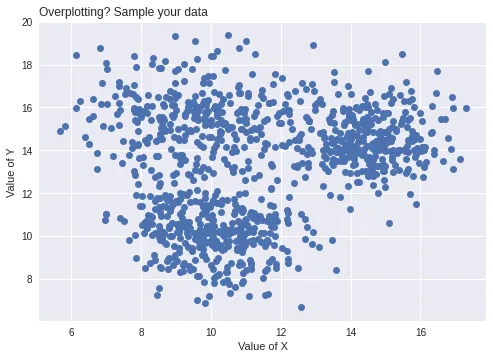

Another alternavite solution is to decrease the number of observations. You can use the sample() function of pandas library to select a random sample of items:

# libraries
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
import pandas as pd

# Dataset:
df=pd.DataFrame({'x': np.random.normal(10, 1.2, 20000), 'y': np.random.normal(10, 1.2, 20000), 'group': np.repeat('A',20000) })
tmp1=pd.DataFrame({'x': np.random.normal(14.5, 1.2, 20000), 'y': np.random.normal(14.5, 1.2, 20000), 'group': np.repeat('B',20000) })
tmp2=pd.DataFrame({'x': np.random.normal(9.5, 1.5, 20000), 'y': np.random.normal(15.5, 1.5, 20000), 'group': np.repeat('C',20000) })
df=df.append(tmp1).append(tmp2)

# Sample 1000 random lines
df_sample=df.sample(1000)

# Make the plot with this subset
plt.plot( 'x', 'y', "", data=df_sample, linestyle='', marker='o')

# titles
plt.xlabel('Value of X')
plt.ylabel('Value of Y')
plt.title('Overplotting? Sample your data', loc='left')
plt.show()

Filtering

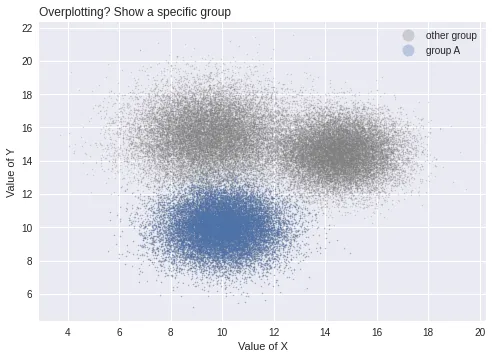

You can filter the data by groups and label a specific group that you want to highlight with coloring it differently:

# libraries
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
import pandas as pd

# Dataset:
df=pd.DataFrame({'x': np.random.normal(10, 1.2, 20000), 'y': np.random.normal(10, 1.2, 20000), 'group': np.repeat('A',20000) })
tmp1=pd.DataFrame({'x': np.random.normal(14.5, 1.2, 20000), 'y': np.random.normal(14.5, 1.2, 20000), 'group': np.repeat('B',20000) })
tmp2=pd.DataFrame({'x': np.random.normal(9.5, 1.5, 20000), 'y': np.random.normal(15.5, 1.5, 20000), 'group': np.repeat('C',20000) })
df=df.append(tmp1).append(tmp2)

# Filter the data randomly
df_filtered = df[ df['group'] == 'A']
# Plot the whole dataset
plt.plot( 'x', 'y', "", data=df, linestyle='', marker='o', markersize=1.5, color="grey", alpha=0.3, label='other group')

# Add the group to study
plt.plot( 'x', 'y', "", data=df_filtered, linestyle='', marker='o', markersize=1.5, alpha=0.3, label='group A')

# Add titles and legend
plt.legend(markerscale=8)
plt.xlabel('Value of X')
plt.ylabel('Value of Y')
plt.title('Overplotting? Show a specific group', loc='left')
plt.show()

Grouping

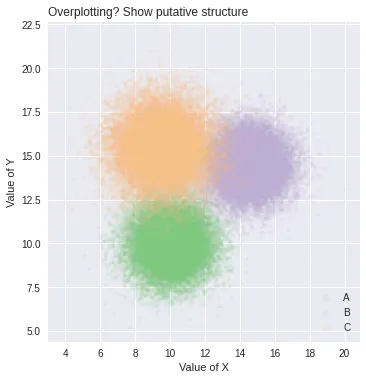

You can easily show different groups of your data points by using the lmplot() function of the seaborn and passing the hue parameter to the function.

# libraries
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
import pandas as pd

# Dataset:
df=pd.DataFrame({'x': np.random.normal(10, 1.2, 20000), 'y': np.random.normal(10, 1.2, 20000), 'group': np.repeat('A',20000) })
tmp1=pd.DataFrame({'x': np.random.normal(14.5, 1.2, 20000), 'y': np.random.normal(14.5, 1.2, 20000), 'group': np.repeat('B',20000) })
tmp2=pd.DataFrame({'x': np.random.normal(9.5, 1.5, 20000), 'y': np.random.normal(15.5, 1.5, 20000), 'group': np.repeat('C',20000) })
df=df.append(tmp1).append(tmp2)

# Plot
sns.lmplot( x="x", y="y", data=df, fit_reg=False, hue='group', legend=False, palette="Accent", scatter_kws={"alpha":0.1,"s":15} )

# Legend
plt.legend(loc='lower right', markerscale=2)

# titles
plt.xlabel('Value of X')
plt.ylabel('Value of Y')
plt.title('Overplotting? Show putative structure', loc='left')
plt.show()

Faceting

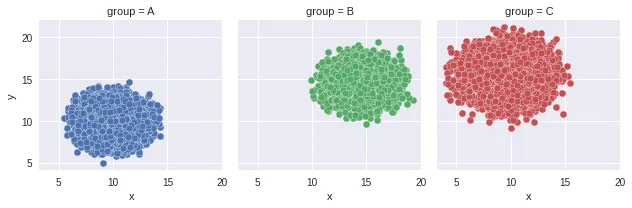

Faceting is one of the methods you can use to avoid overlapping. Seaborn has a function FacetGrid() for faceting. Note that you can see this post for more information.

# libraries
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
import pandas as pd

# Dataset:
df=pd.DataFrame({'x': np.random.normal(10, 1.2, 20000), 'y': np.random.normal(10, 1.2, 20000), 'group': np.repeat('A',20000) })
tmp1=pd.DataFrame({'x': np.random.normal(14.5, 1.2, 20000), 'y': np.random.normal(14.5, 1.2, 20000), 'group': np.repeat('B',20000) })
tmp2=pd.DataFrame({'x': np.random.normal(9.5, 1.5, 20000), 'y': np.random.normal(15.5, 1.5, 20000), 'group': np.repeat('C',20000) })
df=df.append(tmp1).append(tmp2)

# Use seaborn for easy faceting
g = sns.FacetGrid(df, col="group", hue="group")
g = (g.map(plt.scatter, "x", "y", edgecolor="w"))

Jitter

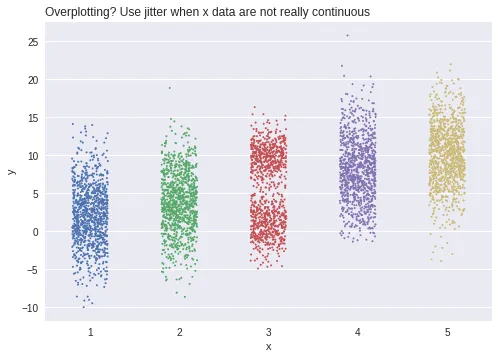

You can use jitter when you have overlapping points, it makes easier to see the distribution. Seaborn has a function stripplot() you can use for this purpose:

# libraries
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
import pandas as pd

# Dataset:
a=np.concatenate([np.random.normal(2, 4, 1000), np.random.normal(4, 4, 1000), np.random.normal(1, 2, 500), np.random.normal(10, 2, 500), np.random.normal(8, 4, 1000), np.random.normal(10, 4, 1000)])
df=pd.DataFrame({'x': np.repeat( range(1,6), 1000), 'y': a })

# plot

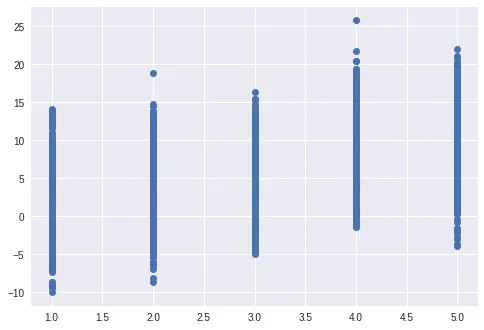

plt.plot( 'x', 'y', "", data=df, linestyle='', marker='o')
plt.show()

# A scatterplot with jitter
sns.stripplot(data =df, x="x", y="y", jitter=0.2, size=2)
plt.title('Overplotting? Use jitter when x data are not really continuous', loc='left')
plt.show()

3D

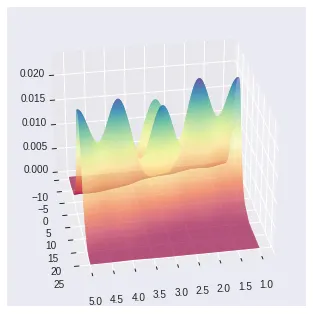

Sometimes it might be useful to use 3D graphs instead of 2D graphs in order to see distributions more clearly. The following code produces a 3D plot using the scipy library:

# libraries
from scipy.stats import kde
from mpl_toolkits.mplot3d import Axes3D
import pandas as pd
import matplotlib.pyplot as plt

# Evaluate a gaussian kde on a regular grid of nbins x nbins over data extents
nbins=300
k = kde.gaussian_kde([df.x,df.y])
xi, yi = np.mgrid[ df.x.min():df.x.max():nbins*1j, df.y.min():df.y.max():nbins*1j]
zi = k(np.vstack([xi.flatten(), yi.flatten()]))

# Transform it in a dataframe
data=pd.DataFrame({'x': xi.flatten(), 'y': yi.flatten(), 'z': zi })

# Make the plot
fig = plt.figure()
ax = fig.gca(projection='3d')
ax.plot_trisurf(data.x, data.y, data.z, cmap=plt.cm.Spectral, linewidth=0.2)

# Adapt angle, first number is up/down, second number is right/left
ax.view_init(30, 80)

Marginal Distribution

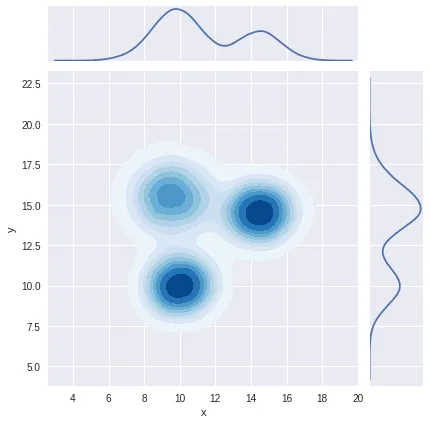

Lastly, you can draw a marginal plot using seaborn in order to aviod overlapping in your graph. Note that you can check this post to find out details on marginal plots.

# libraries
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
import pandas as pd

# Dataset:
df=pd.DataFrame({'x': np.random.normal(10, 1.2, 20000), 'y': np.random.normal(10, 1.2, 20000), 'group': np.repeat('A',20000) })
tmp1=pd.DataFrame({'x': np.random.normal(14.5, 1.2, 20000), 'y': np.random.normal(14.5, 1.2, 20000), 'group': np.repeat('B',20000) })
tmp2=pd.DataFrame({'x': np.random.normal(9.5, 1.5, 20000), 'y': np.random.normal(15.5, 1.5, 20000), 'group': np.repeat('C',20000) })
df=df.append(tmp1).append(tmp2)

# 2D density + marginal distribution:
sns.jointplot(x=df.x, y=df.y, cmap="Blues", shade=True, kind='kde')
plt.show()
