Histogram with several variables with Seaborn


If you have several numerical variables and want to visualize their distributions together, you have 2 options: plot them on the same axis or make use of matplotlib.Figure and matplotlib.Axes objects to customize your figure. The first option is nicer if you do not have too many variable, and if they do not overlap much.

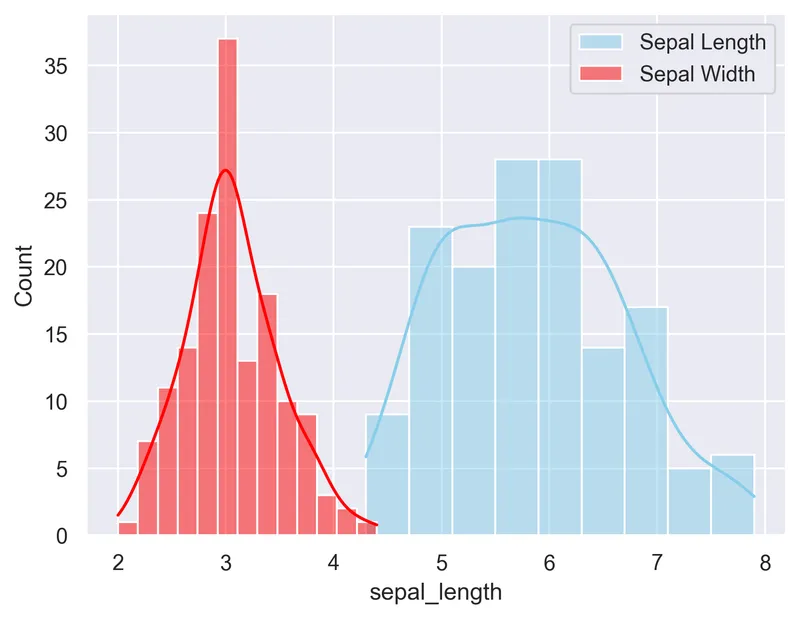

Plotting distributions on the same graph

# libraries & dataset
import seaborn as sns
import matplotlib.pyplot as plt
# set a grey background (use sns.set_theme() if seaborn version 0.11.0 or above)
sns.set(style="darkgrid")
df = sns.load_dataset("iris")

sns.histplot(data=df, x="sepal_length", color="skyblue", label="Sepal Length", kde=True)
sns.histplot(data=df, x="sepal_width", color="red", label="Sepal Width", kde=True)

plt.legend()
plt.show()

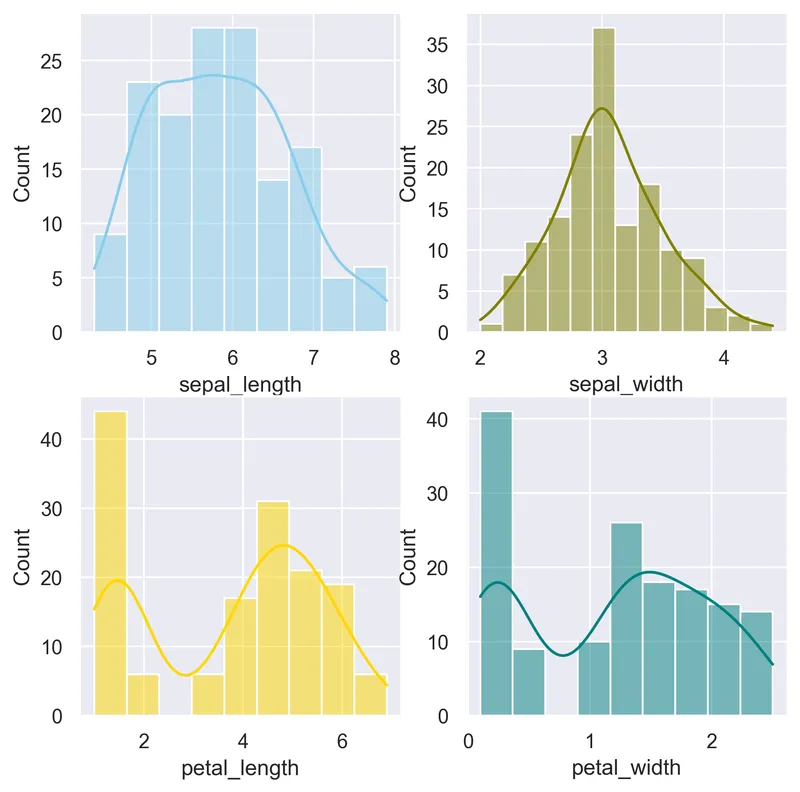

Splitting the figure in as much axes as needed

# libraries & dataset
import seaborn as sns
import matplotlib.pyplot as plt
# set a grey background (use sns.set_theme() if seaborn version 0.11.0 or above)
sns.set(style="darkgrid")
df = sns.load_dataset("iris")

fig, axs = plt.subplots(2, 2, figsize=(7, 7))

sns.histplot(data=df, x="sepal_length", kde=True, color="skyblue", ax=axs[0, 0])
sns.histplot(data=df, x="sepal_width", kde=True, color="olive", ax=axs[0, 1])
sns.histplot(data=df, x="petal_length", kde=True, color="gold", ax=axs[1, 0])
sns.histplot(data=df, x="petal_width", kde=True, color="teal", ax=axs[1, 1])

plt.show()

Violin

Density

Histogram

Boxplot

Ridgeline

Contact & Edit

👋 This document is a work by Yan Holtz. Any feedback is highly encouraged. You can fill an issue on Github, drop me a message onTwitter, or send an email pasting yan.holtz.data with gmail.com.

This page is just a jupyter notebook, you can edit it here. Please help me making this website better 🙏!
