Customizing boxplots appearance with Seaborn


This post aims to describe 3 different customization tasks that you may want to apply to a Seaborn boxplot.

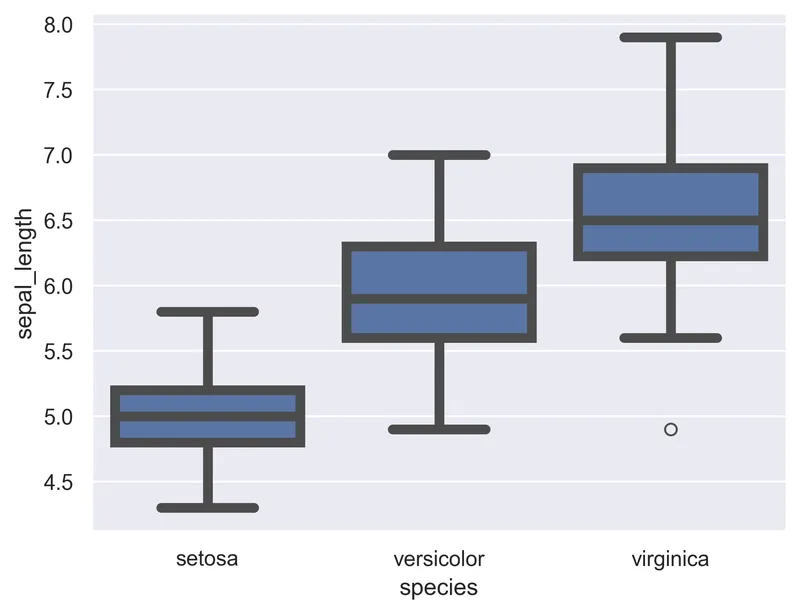

Custom linewidth

Customizing your boxplot's linewidth is really straightforward and quickly done through the 'linewidth' argument.

# libraries & dataset
import seaborn as sns
import matplotlib.pyplot as plt
# set a grey background (use sns.set_theme() if seaborn version 0.11.0 or above)
sns.set(style="darkgrid")
df = sns.load_dataset('iris')

sns.boxplot(x=df["species"], y=df["sepal_length"], linewidth=5)
plt.show()

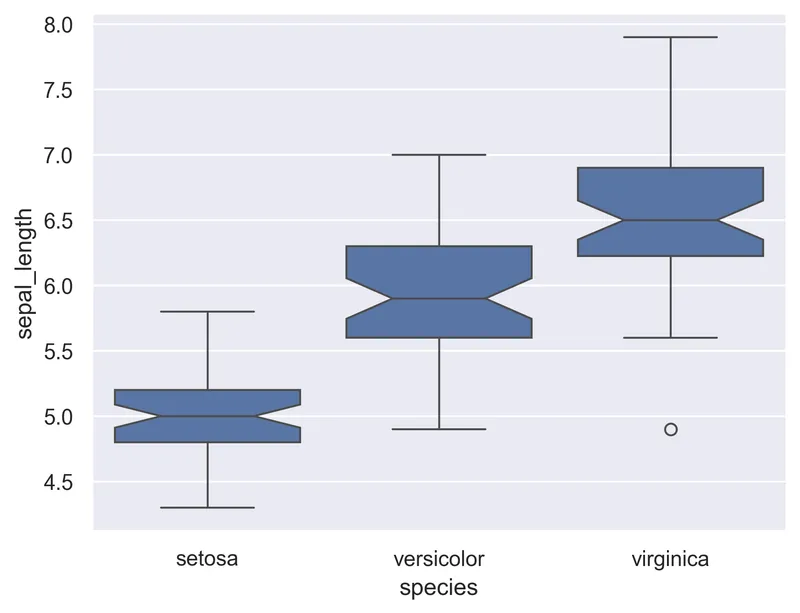

Add notch

# libraries & dataset
import seaborn as sns
import matplotlib.pyplot as plt
# set a grey background (use sns.set_theme() if seaborn version 0.11.0 or above)
sns.set(style="darkgrid")
df = sns.load_dataset('iris')

sns.boxplot(x=df["species"], y=df["sepal_length"], notch=True)
plt.show()

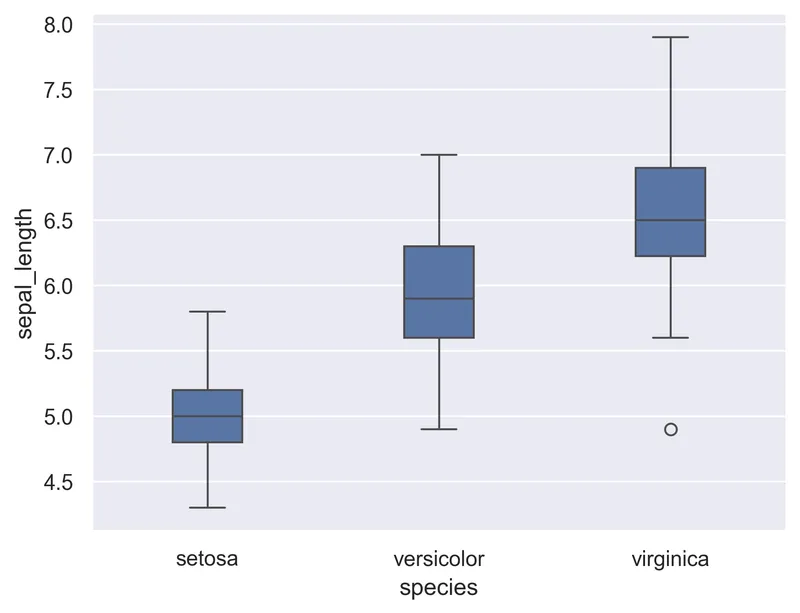

Controlling box size

This can be an interesting modification in the case where you are facing with multiple categories to display in the same figure, given that space is limited.

# libraries & dataset
import seaborn as sns
import matplotlib.pyplot as plt
# set a grey background (use sns.set_theme() if seaborn version 0.11.0 or above)
sns.set(style="darkgrid")
df = sns.load_dataset('iris')

sns.boxplot(x=df["species"], y=df["sepal_length"], width=0.3)
plt.show()

Violin

Density

Histogram

Boxplot

Ridgeline

Contact & Edit

👋 This document is a work by Yan Holtz. Any feedback is highly encouraged. You can fill an issue on Github, drop me a message onTwitter, or send an email pasting yan.holtz.data with gmail.com.

This page is just a jupyter notebook, you can edit it here. Please help me making this website better 🙏!
