Map a color to network nodes


A common task is to color each node of your network chart following a feature of your node (we call it mapping a color). It allows to display more information in your chart. This post explains how to map a color to network nodes in python.

There are 2 possibilities to to map a color to network nodes:

1) The feature you want to map is a numerical value. Then we will use a continuous color scale. On the left graph, A is darker than C that is darker than B…

2) The feature is categorical. On the right graph, A and B belongs to the same group, D and E are grouped together and C is alone in his group. We used a categorical color scale.

Usually we work with 2 tables. The first one provides the links between nodes. The second one provides the features of each node. You can link these 2 files as follows:

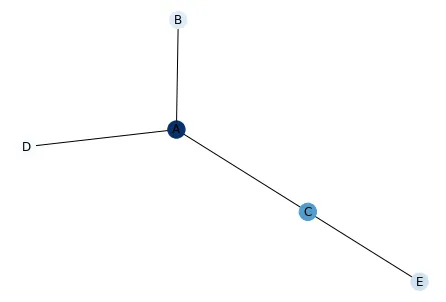

Continuous Color Scale (left)

# libraries
import pandas as pd
import numpy as np
import networkx as nx
import matplotlib.pyplot as plt

# Build a dataframe with your connections
df = pd.DataFrame({ 'from':['A', 'B', 'C','A'], 'to':['D', 'A', 'E','C']})

# And a data frame with characteristics for your nodes
carac = pd.DataFrame({ 'ID':['A', 'B', 'C','D','E'], 'myvalue':['123','25','76','12','34'] })

# Build your graph
G=nx.from_pandas_edgelist(df, 'from', 'to', create_using=nx.Graph() )

# The order of the node for networkX is the following order:
G.nodes()
# NodeView(('A', 'D', 'B', 'C', 'E'))

# Thus, we cannot give directly the 'myvalue' column to netowrkX, we need to arrange the order!

# Here is the tricky part: I need to reorder carac, to assign the good color to each node
carac= carac.set_index('ID')
carac=carac.reindex(G.nodes())

# Plot it, providing a continuous color scale with cmap:
nx.draw(G, with_labels=True, node_color=carac['myvalue'].astype(int), cmap=plt.cm.Blues)
plt.show()

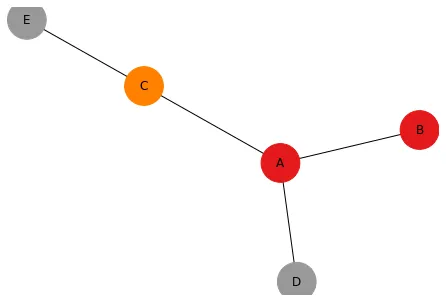

Categorical Color Scale (right)

# libraries
import pandas as pd
import numpy as np
import networkx as nx
import matplotlib.pyplot as plt

# Build a dataframe with your connections
df = pd.DataFrame({ 'from':['A', 'B', 'C','A'], 'to':['D', 'A', 'E','C']})

# And a data frame with characteristics for your nodes
carac = pd.DataFrame({ 'ID':['A', 'B', 'C','D','E'], 'myvalue':['group1','group1','group2','group3','group3'] })

# Build your graph
G=nx.from_pandas_edgelist(df, 'from', 'to', create_using=nx.Graph() )

# The order of the node for networkX is the following order:
G.nodes()
# Thus, we cannot give directly the 'myvalue' column to netowrkX, we need to arrange the order!

# Here is the tricky part: I need to reorder carac to assign the good color to each node
carac= carac.set_index('ID')
carac=carac.reindex(G.nodes())

# And I need to transform my categorical column in a numerical value: group1->1, group2->2...
carac['myvalue']=pd.Categorical(carac['myvalue'])
carac['myvalue'].cat.codes

# Custom the nodes:
nx.draw(G, with_labels=True, node_color=carac['myvalue'].cat.codes, cmap=plt.cm.Set1, node_size=1500)
