Drawing a ridgeline graph with Plotly


A Ridgelineplot (formerly called a Joyplot) allows to study the distribution of a numeric variable for several groups. Throughout the following example, we will consider average temperatures in Seattle between 1950 and 2010 and we will show how to visualize their distribution.

As with Plotly, no Seaborn function enables us to directly plot a ridgeline. In order to do so, we inspired from this example displayed in Seaborn documentation, that makes use of a Seaborn FacetGrid object with kdeplots to generate a ridgeline graph. We adapted the data as well as some lines of code. Feel free to investigate by yourself how to customize this graph further!

# getting necessary libraries
import numpy as np
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt
sns.set_theme(style="white", rc={"axes.facecolor": (0, 0, 0, 0)})

# getting the data
temp = pd.read_csv('https://raw.githubusercontent.com/plotly/datasets/master/2016-weather-data-seattle.csv') # we retrieve the data from plotly's GitHub repository
temp['month'] = pd.to_datetime(temp['Date']).dt.month # we store the month in a separate column

# we define a dictionnary with months that we'll use later
month_dict = {1: 'january',
              2: 'february',
              3: 'march',
              4: 'april',
              5: 'may',
              6: 'june',
              7: 'july',
              8: 'august',
              9: 'september',
              10: 'october',
              11: 'november',
              12: 'december'}

# we create a 'month' column
temp['month'] = temp['month'].map(month_dict)

# we generate a pd.Serie with the mean temperature for each month (used later for colors in the FacetGrid plot), and we create a new column in temp dataframe
month_mean_serie = temp.groupby('month')['Mean_TemperatureC'].mean()
temp['mean_month'] = temp['month'].map(month_mean_serie)

At this point, you can have a look at what the dataframe looks like

temp.head()
Date Max_TemperatureC Mean_TemperatureC Min_TemperatureC month mean_month
0 1/1/1948 10 8.0 7.0 january 4.493982
1 1/2/1948 6 4.0 3.0 january 4.493982
2 1/3/1948 7 4.0 2.0 january 4.493982
3 1/4/1948 7 4.0 2.0 january 4.493982
4 1/5/1948 7 3.0 0.0 january 4.493982

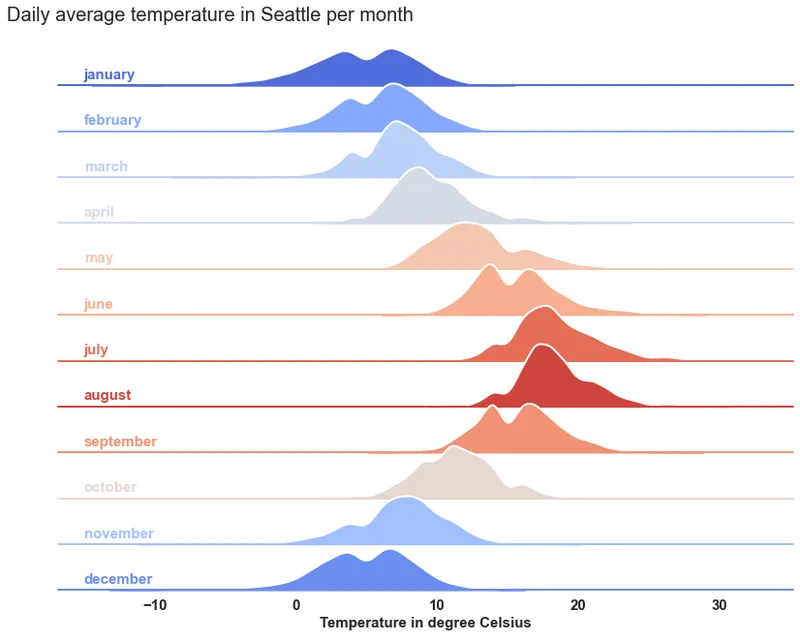

Eventually, we generate the ridgeline plot by first instantiating a Seaborn FacetGrid object.

# we generate a color palette with Seaborn.color_palette()
pal = sns.color_palette(palette='coolwarm', n_colors=12)

# in the sns.FacetGrid class, the 'hue' argument is the one that is the one that will be represented by colors with 'palette'
g = sns.FacetGrid(temp, row='month', hue='mean_month', aspect=15, height=0.75, palette=pal)

# then we add the densities kdeplots for each month
g.map(sns.kdeplot, 'Mean_TemperatureC',
      bw_adjust=1, clip_on=False,
      fill=True, alpha=1, linewidth=1.5)

# here we add a white line that represents the contour of each kdeplot
g.map(sns.kdeplot, 'Mean_TemperatureC',
      bw_adjust=1, clip_on=False,
      color="w", lw=2)

# here we add a horizontal line for each plot
g.map(plt.axhline, y=0,
      lw=2, clip_on=False)

# we loop over the FacetGrid figure axes (g.axes.flat) and add the month as text with the right color
# notice how ax.lines[-1].get_color() enables you to access the last line's color in each matplotlib.Axes
for i, ax in enumerate(g.axes.flat):
    ax.text(-15, 0.02, month_dict[i+1],
            fontweight='bold', fontsize=15,
            color=ax.lines[-1].get_color())

# we use matplotlib.Figure.subplots_adjust() function to get the subplots to overlap
g.fig.subplots_adjust(hspace=-0.3)

# eventually we remove axes titles, yticks and spines
g.set_titles("")
g.set(yticks=[])
g.despine(bottom=True, left=True)

plt.setp(ax.get_xticklabels(), fontsize=15, fontweight='bold')
plt.xlabel('Temperature in degree Celsius', fontweight='bold', fontsize=15)
g.fig.suptitle('Daily average temperature in Seattle per month',
               ha='right',
               fontsize=20,
               fontweight=20)

plt.show()
