Scatterplot with labels and text repel in Matplotlib


A custom scatterplot with auto-positioned labels to explore the palmerpenguins dataset made with Python and Matplotlib. This blogpost guides you through a highly customized scatterplot that includes a variety of custom colors, markers, and fonts. The library adjustText is used to automatically adjust the position of labels in the plots.

About

This page showcases the work of Tuo Wang that introduces packages to make ggplot2 plots more beautiful. You can find the original R code on Tuo's blog here.

Thanks to him for accepting sharing his work here! Thanks also to TomΓ‘s Capretto who translated this work from R to Python! πŸ™πŸ™

Load libraries

Today's visualization is made with matplotlib and the library adjustText to automatically adjust the position of labels in the plot. In addition, load_penguins() is imported from the palmerpenguins library to have access to the popular palmerpenguins dataset, and the Faker class is imported from the faker library to generate random names.

Note: the adjustText library can be installed with pip install adjustText

import matplotlib.pyplot as plt
import numpy as np

from adjustText import adjust_text
from faker import Faker
from palmerpenguins import load_penguins

Load and prepare data

The dataset used today was collected and made available by Dr. Kristen Gorman and the Palmer Station, Antarctica LTER, a member of the Long Term Ecological Research Network. This dataset was popularized by Allison Horst in her R package palmerpenguins with the goal to offer an alternative to the iris dataset for data exploration and visualization.

penguins = load_penguins()
penguins.head()
species island bill_length_mm bill_depth_mm flipper_length_mm body_mass_g sex year
0 Adelie Torgersen 39.1 18.7 181.0 3750.0 male 2007
1 Adelie Torgersen 39.5 17.4 186.0 3800.0 female 2007
2 Adelie Torgersen 40.3 18.0 195.0 3250.0 female 2007
3 Adelie Torgersen NaN NaN NaN NaN NaN 2007
4 Adelie Torgersen 36.7 19.3 193.0 3450.0 female 2007

Today's vizualisation does not require much data preparation. The only preparation step is to drop observations with missing values.

penguins = penguins.dropna()

Basic Scatterplot

Let's start by defining some important values that are used throughout the plot.

# Colors
BG_WHITE = "#fbf9f4"
GREY_LIGHT = "#b4aea9"
GREY50 = "#7F7F7F"
GREY30 = "#4d4d4d"
BLUE_DARK = "#1B2838"
BLUE = "#2a475e"
COLORS = ["#386cb0", "#fdb462", "#7fc97f" ] # A color for each species

# A list with the species names
SPECIES = sorted(penguins["species"].unique())

# Horizontal lines
HLINES = [40, 50, 60]

# Vertical and horizontal tick marks
YTICKS = [40, 50, 60]
XTICKS = [160, 170, 180, 190, 200, 210, 220, 230, 240]

# List of random names
# Generate Faker instance and set seed or reproducibility
faker = Faker()
# Set seed for reproducibility of the random names
faker.seed_instance(11)
NAMES = [faker.first_name() for i in range(len(penguins))]

# The markers we use in the scatterplot
MARKERS = ["o", "^", "s"] # circle, triangle, square

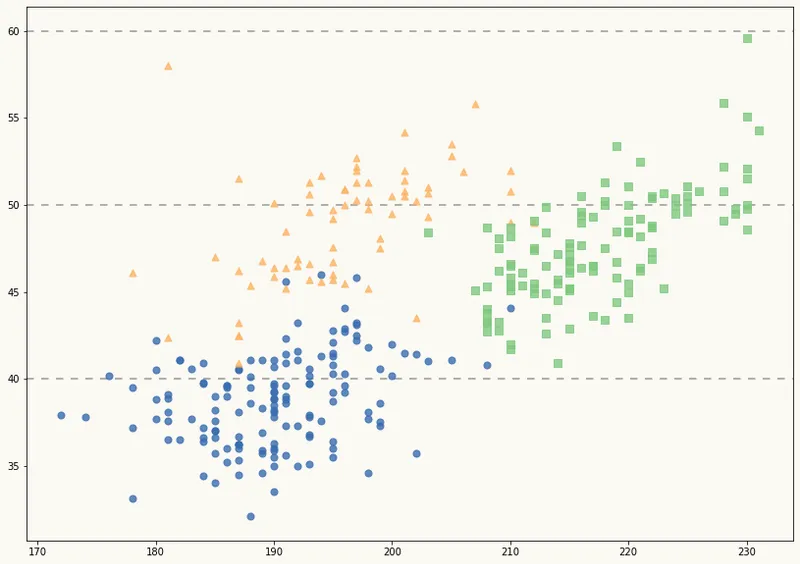

Then, let's initialize the chart layout, add a background color and the basic scatterplot:

# Initialize layout ----------------------------------------------
fig, ax = plt.subplots(figsize= (14, 10))

# Background color
fig.patch.set_facecolor(BG_WHITE)
ax.set_facecolor(BG_WHITE)

# Horizontal lines in the background
for h in HLINES:
    ax.axhline(h, color=GREY50, ls=(0, (5, 5)), alpha=0.8, zorder=0)

# Add scatterplot  -----------------------------------------------
# Loop through species, colors, and markers.
# Each species receives a different combination of color and marker.
for species, color, marker  in zip(SPECIES, COLORS, MARKERS):
    data = penguins[penguins["species"] == species]
    ax.scatter(
        "flipper_length_mm", "bill_length_mm", s=50, color=color,
        marker=marker, alpha=0.8, data=data
    )

That's a pretty good start, but let's make it better!

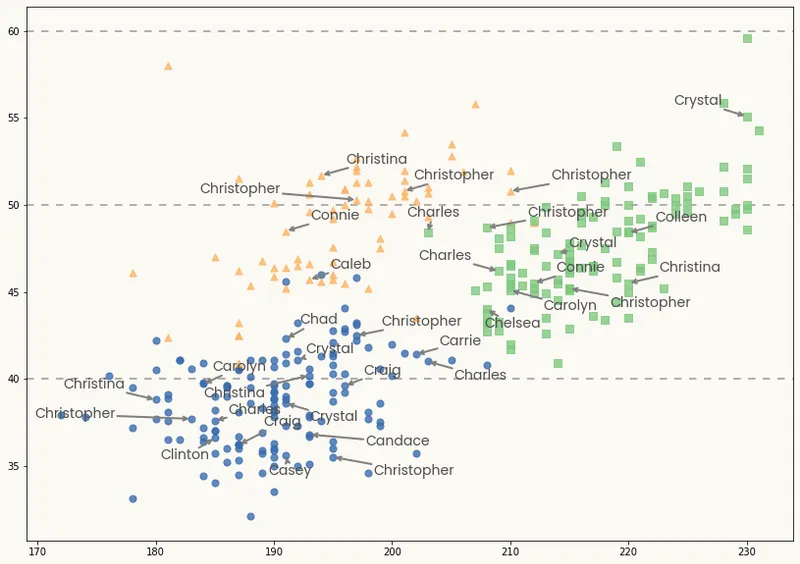

Add labels with no overlap

What's truely missing here are labels. It's very frustrating not knowing which item is hidden under a data point, isn't it!?

It is pretty challenging to add many labels on a plot since labels tend to overlap each other, making the figure unreadable. Fortunately, the adjustText package is here to help us. It provides an algorithm that will automatically place the labels for us. Let's do it!

# Add name labels ------------------------------------------------
# Only names that start with the letter "C" are added.
# `ax.text()` outputs are appended to the `TEXTS` list.
# This list is passed to `adjust_text()` to repel the labels and add arrows.
TEXTS = []
for i in range(len(penguins)):
    if NAMES[i].startswith("C"):
        x = penguins["flipper_length_mm"].iloc[i]
        y = penguins["bill_length_mm"].iloc[i]
        text = NAMES[i]
        TEXTS.append(ax.text(x, y, text, color=GREY30, fontsize=14, fontname="Poppins"))


# Adjust text position and add arrows ----------------------------
# 'expand_points' is a tuple with two multipliers by which to expand
# the bounding box of texts when repelling them from points

# 'arrowprops' receives a dictionary with all the properties we want
# for the arrows
adjust_text(
    TEXTS,
    expand_points=(2, 2),
    arrowprops=dict(
        arrowstyle="->",
        color=GREY50,
        lw=2
    ),
    ax=fig.axes[0]
)
fig
<Figure size 432x288 with 0 Axes>

Note the ax=fig.axes[0] in the adjust_text() function call. That is not always necessary. In this case, the plot is built in several steps for demonstration purposes and so the axis object must be passed explicitly. When ax isn't explicitly passed, adjust_text() will use plt.gca() to obtain the axis. If all the code used to generate your plot goes in the same chunk of code than adjust_text), then there's no need to pass any axis.

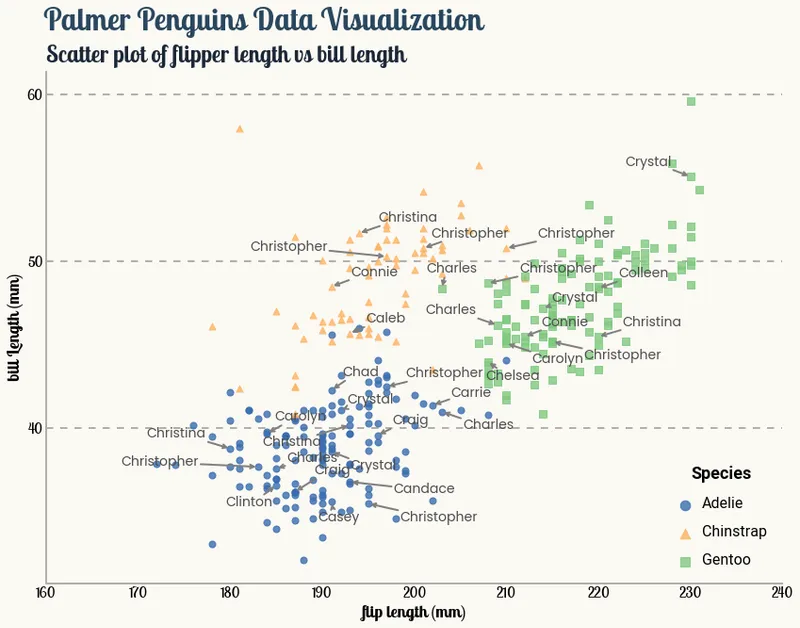

Final chart

The chart above is pretty close from being publication ready. What's needed now is a good title, a legend to make color and shapes more insightful, and some axis customization:

# Add title and subtitle -----------------------------------------
# Title
fig.suptitle(
    "Palmer Penguins Data Visualization",
    x = 0.122,
    y = 0.975,
    ha="left",
    fontsize=32,
    fontname="Lobster Two",
    color=BLUE,
    weight="bold",
)

# Subtitle
ax.set_title(
    "Scatter plot of flipper length vs bill length",
    loc="left",
    ha="left",
    fontsize=24,
    fontname="Lobster Two",
    color=BLUE_DARK,
    weight="bold",
    pad=10
)

# Add legend -----------------------------------------------------

# We store the result of `ax.legend()` for further customizations
legend = ax.legend(
    loc=(0.85, 0.025), # bottom-right
    labelspacing=1.5,  # add space between labels
    markerscale=1.5,   # increase marker size
    frameon=False      # don't put a frame
)

# Iterate through text elements and species names
for text, species in zip(legend.get_texts(), SPECIES):
    text.set_text(species)       # Set species name
    text.set_fontname("Roboto")  # Change default font
    text.set_fontsize(16)        # Change default font size

# Grab title and customize its appearence.
legend.set_title("Species")
legend_title = legend.get_title()
legend_title.set_fontname("Roboto")
legend_title.set_fontweight("bold")
legend_title.set_fontsize(18)
legend_title.set_ha("left")

# Customize layout -----------------------------------------------
# Hide spines
ax.spines["right"].set_color("none")
ax.spines["top"].set_color("none")

# Customize spines color
ax.spines["left"].set_color(GREY_LIGHT)
ax.spines["left"].set_linewidth(2)
ax.spines["bottom"].set_color(GREY_LIGHT)
ax.spines["bottom"].set_linewidth(2)

# Customize labels and ticks
ax.tick_params(length=0)

ax.set_yticks(YTICKS)
ax.set_yticklabels(YTICKS, fontname="Lobster Two", size=15)
ax.set_ylabel("bill Length (mm)", fontname="Lobster Two", size=18, weight="bold")

ax.set_xticks(XTICKS)
ax.set_xticklabels(XTICKS, fontname="Lobster Two", size=15)
ax.set_xlabel("flip length (mm)", fontname="Lobster Two", size=18, weight="bold")

fig
