Custom a Matplotlib Scatterplot


This post aims to provide a few elements of customization you can make to your scatter plot using the matplotlib library.

Marker Shape

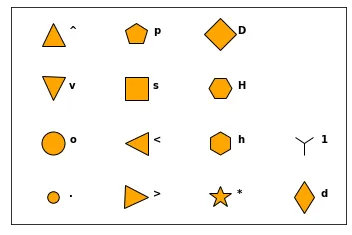

Just use the marker argument of the plot() function to custom the shape of the data points. The code below produces a scatter plot with star shaped markers (figure on the left). The figure on the right shows you the possible shapes offered by python.

# libraries
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

# dataset
df=pd.DataFrame({'x_values': range(1,101), 'y_values': np.random.randn(100)*80+range(1,101) })

# === Left figure:
plt.plot( 'x_values', 'y_values', data=df, linestyle='none', marker='*')
plt.show()

# === Right figure:
all_poss=['.','o','v','^','>','<','s','p','*','h','H','D','d','1','','']

# to see all possibilities:
# markers.MarkerStyle.markers.keys()

# set the limit of x and y axis:
plt.xlim(0.5,4.5)
plt.ylim(0.5,4.5)

# remove ticks and values of axis:
plt.xticks([])
plt.yticks([])
#plt.set_xlabel(size=0)

# Make a loop to add markers one by one
num=0
for x in range(1,5):
    for y in range(1,5):
        num += 1
        plt.plot(x,y,marker=all_poss[num-1], markerfacecolor='orange', markersize=23, markeredgecolor="black")
        plt.text(x+0.2, y, all_poss[num-1], horizontalalignment='left', size='medium', color='black', weight='semibold')

Marker Size

To change the marker size, just use the markersize argument:

# libraries
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

# dataset
df=pd.DataFrame({'x_values': range(1,101), 'y_values': np.random.randn(100)*80+range(1,101) })

# scatter plot
plt.plot( 'x_values', 'y_values', data=df, linestyle='none', marker='D', markersize=16)
plt.show()

Marker Color

The color is controlled by the markerfacecolor and markeredgecolor arguments. There are several ways to call a color, see this dedicated page for more information.

# libraries
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

# dataset
df=pd.DataFrame({'x_values': range(1,101), 'y_values': np.random.randn(100)*80+range(1,101) })

# scatter plot
plt.plot( 'x_values', 'y_values', data=df, linestyle='none', markerfacecolor='skyblue', marker="o", markeredgecolor="black", markersize=16)
plt.show()

Marker Edge

As you can control the marker edge color with the markeredgecolor argument, you can also control the marker width with the markeredgewidth argument.

# libraries
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

# dataset
df=pd.DataFrame({'x_values': range(1,101), 'y_values': np.random.randn(100)*80+range(1,101) })

# scatter plot
plt.plot( 'x_values', 'y_values', data=df, linestyle='none', marker='D', markersize=16, markeredgecolor="orange", markeredgewidth=5)
plt.show()
